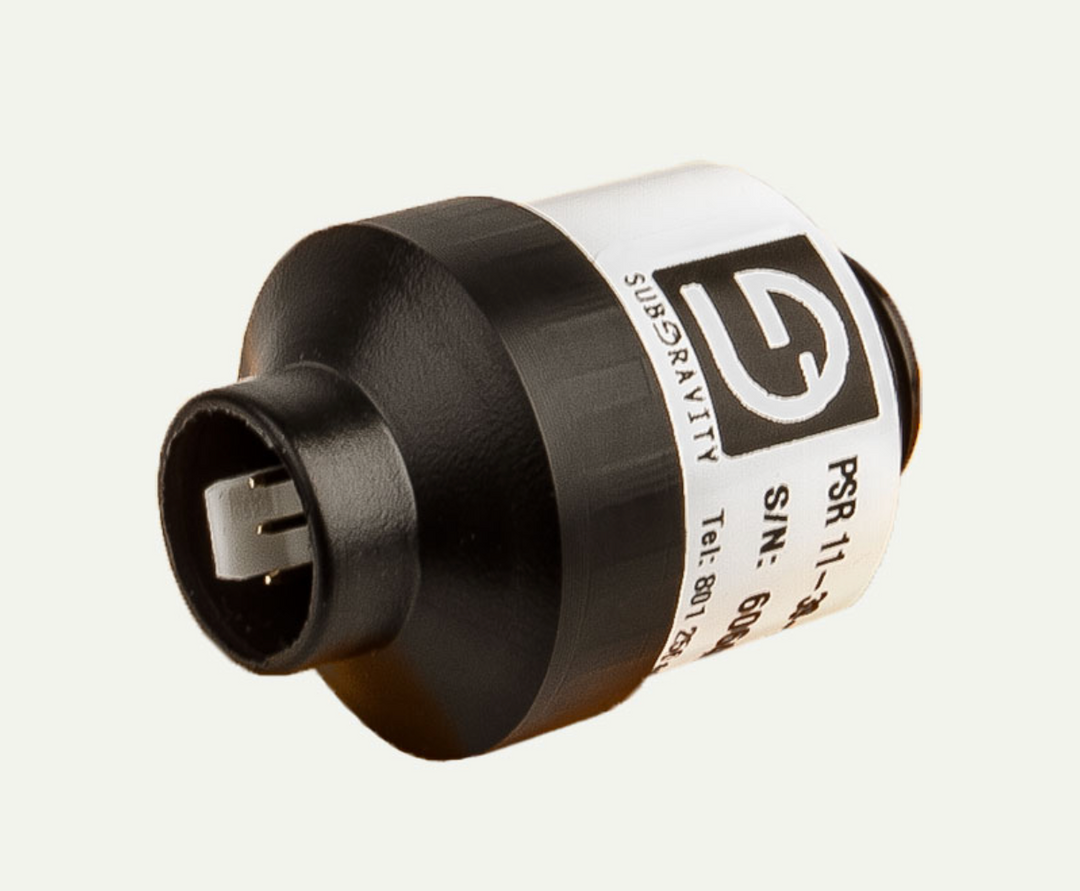

SG-39-M Oxygen Sensor (Molex)
Your loop is only as trustworthy as your cells, and this is the part you do not gamble on. The SubGravity SG-39-M is an R22-D type oxygen sensor built specifically for the dive environment, with a 3-pin Molex connector for compatible rebreather electronics. Every sensor is output- and stability-checked three to four times during manufacturing under an ISO 9001-certified quality program, and each one ships with a serial-numbered test report proving stable output in air, at 100% oxygen, and pressurized to 1.6 ATA. It arrives in a gas barrier bag inside a protective box, so it is as fresh as the day it was sealed.
- R22-D type sensor specification with 3-pin Molex output connector
- Range: 0-100% oxygen; signal output 8.5-14 mV
- 90% response time: 6 seconds
- Serial-numbered factory test report with every sensor
- Ships in a gas barrier bag and protective cardboard box
- Warranty: 12 months from purchase or 15 months from manufacture, whichever comes first
Replace your cells on schedule — order a set before your next build.
Pairs well with: a full set of three matched sensors, CCR sorb, and a spare O2 cell storage bag.
Warranty note: under normal operating conditions the sensor is warranted free of defects in material and workmanship for the period above, provided it is properly installed and operated. The sole remedy for a sensor determined by SubGravity to be defective is replacement. SubGravity is not liable for negligence, misapplication, abuse, or accident.
